| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | CE |
| Model Number: | BR-60 3+1 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Export packaging |
| Delivery Time: | 20 days after receipt of deposit |
| Payment Terms: | T/T |
| Supply Ability: | 1000000 per month |
| Packing: | Carton | Voltage Classes: | Low Voltage |
|---|---|---|---|

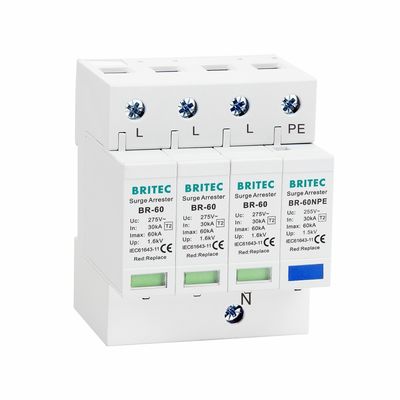

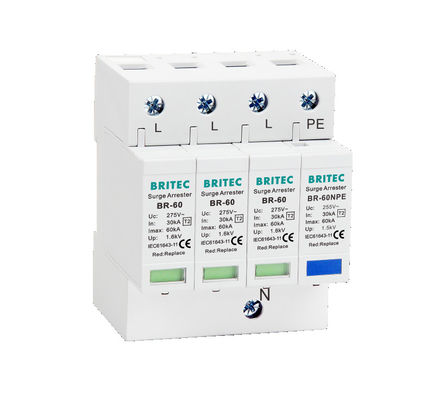

| Material: | Thermoplastic UL94-V0 | Product Name: | Type 2 Surge Protection Device |
| Size: | 90*72*70mm | Operating Temperature: | -40℃~+80℃ |
| OEM: | Yes | Brand: | BRITEC |
| Model Number: | BR-60 3+1 | Type: | Varistor Arrester |
| Highlight: | 60KA Surge Type2 Protection Device,3P+NPE Surge Protector Device,90*72*70mm Surge Protector Device |
||
Type 2 Surge Protection Device is a surge protector designed for protecting sensitive electronic equipment from power surges. It is made of Thermoplastic UL94-V0 material, which is fire-resistant and temperature-resistant. It offers fast response time of 25ns, making it suitable for protecting sensitive equipment from power surges. It comes in low voltage classes, making it suitable for a wide range of applications. It is also available in OEM version, making it a great choice for custom applications. The product name is Type 2 Surge Protection Device, and it is a reliable and effective surge protector for protecting your valuable equipment.
| BR-60 150 3+1 | BR-60 275 3+1 | BR-60 320 3+1 | BR-60 385 3+1 | |
| SPD classification according to EN61643-11 | Type 2 | Type 2 | Type 2 | Type 2 |
| SPD classification according to IEC61643-11 | Class II | Class II | Class II | Class II |
| Max. continuous operating a.c. voltage Uc | 150V | 275V | 320V | 385V |
| Max. continuous operating a.c. voltage[N -PE] Uc | 255V | 255V | 255V | 255V |
| Nominal discharge current (8/20us) In | 30kA | 30kA | 30kA | 30kA |
| Max. discharge current(8/20μs) Imax | 60kA | 60kA | 60kA | 60kA |
| Voltage protection level Up | ≤1.0kV | ≤1.6kV | ≤1.8kV | ≤2.2kV |
| Voltage protection level 5kA Up | ≤0.5kV | ≤0.6kV | ≤1.0kV | ≤1.2kV |
| Voltage protection level [N-PE] Up | ≤1.5kV | ≤1.5kV | ≤1.5kV | ≤1.5kV |
| Max. backup fuse | 160A gG | 160A gG | 160A gG | 160A gG |
| Response time tA | ≤25ns | ≤25ns | ≤25ns | ≤25ns |
| Response time [N-PE] tA | ≤100ns | ≤100ns | ≤100ns | ≤100ns |
| Operating temperature range Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Operating state / fault indication | green / red | green / red | green / red | green / red |
| Cross-section area (Min.) | 4mm2 | 4mm2 | 4mm2 | 4mm2 |
| Cross-section area (Max.) | 35mm2 | 35mm2 | 35mm2 | 35mm2 |
| For mounting on | 35mm Din rail | |||
| Enclosure material | Thermal plastic UL94-V0 | |||
| Degree of protection | IP20 | IP20 | IP20 | IP20 |
It is ideal for providing protection for a range of electrical systems against lightning and other power surge events. This product is suitable for low voltage applications. It is an ideal choice for lightning and surge protection.
Q1: What is the brand name of this product?
A1: The brand name of this product is BRITEC.
Q2: What is the model number of this product?
A2: The model number of this product is BR-60 3+1.
Q3: Where is this product manufactured?
A3: This product is manufactured in China.
Q4: What is the minimum order quantity?
A4: The minimum order quantity is 100pcs.
