| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV/CB/CE/ROHS/ISO9001 |
| Model Number: | BR-25GR 2P |
| Minimum Order Quantity: | 5 PCS |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | 15 days after receipt of deposit |
| Payment Terms: | TT |
| Supply Ability: | 1000000 per month |
| Mounting Type: | DIN Rail 35 Mm | Protection Level: | Type 1 |
|---|---|---|---|
| Humidity Rating: | 95% | Product Structure: | Plug |
| Voltage Rating: | 275V,320V,385V ,440V | Response Time: | ≤100ns |
| Product Name: | Type 1 Surge Protection Device | Number Of Poles: | 1P,1P+N ,2P,3P,3P+N, 4P Optional |
| Highlight: | 275V Type 1 Surge Protection Device,2P IEC SPD lightning protector,BR-25GR SPD lightning protector |
||
| Specification | BR-25GR 150 2P | BR-25GR 275 2P | BR-25GR 320 2P | |
| SPD classification according to EN61643-11 | Type 1 + Type 2 | Type 1 + Type 2 | Type 1 + Type 2 | |
| SPD classification according to IEC61643-11 | Class I + Class II | Class I + Class II | Class I + Class II | |
| Nominal operating voltage | Un | 120V(50/60Hz) | 230V(50/60Hz) | 230V(50/60Hz) |
| Max. continuous operating a.c. voltage | Uc | 150V(50/60Hz) | 275V(50/60Hz) | 320V(50/60Hz) |
| Lightning impulse current (10/350μs) | Iimp | 25kA | 25kA | 25kA |
| Nominal discharge current (8/20μs) | In | 25kA | 25kA | 25kA |
| Max. discharge current (8/20μs) | Imax | 100kA | 100kA | 100kA |
| Quantity of electric charge | Q | 12.5As | 12.5As | 12.5As |
| Specific energy | W/R | 156kJ/Ω | 156kJ/Ω | 156kJ/Ω |
| Voltage protection level | Up | ≤1.5kV | ≤1.5kV | ≤1.5kV |
| Short-circuit current rating a.c. | Isccr | 25kA rms | 25kA rms | 25kA rms |
| Max. backup fuse | 315A gG | 315A gG | 315A gG | |
| Temporary overvoltage | TOV | 440V/120min-withstand | ||
| Response time | tA | ≤100ns | ≤100ns | ≤100ns |
| Operating temperature range | Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Cross-section area (Min.) | 4mm² | 4mm² | 4mm² | |
| Cross-section area (Max.) | 35mm² | 35mm² | 35mm² | |
| For mounting on | 35mm Din rail | |||
| Enclosure material | Thermoplastic UL94-V0 | |||
| Degree of protection | IP20 | IP20 | IP20 | |
| Order Code | B7124 | B7137 | B7150 | |
| Order Code (With remote signaling) | B7125 | B7138 | B7151 | |
Features:
Endurable, sustains multiple strikes.
Protection class: Type 1+2, Class I +Class II.
BR-25GR 2P is suitable for TN system.
Maximum continuous operating voltage Uc 150VAC/ 275VAC/ 320VAC.

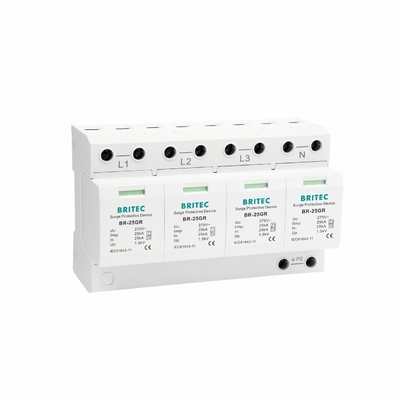

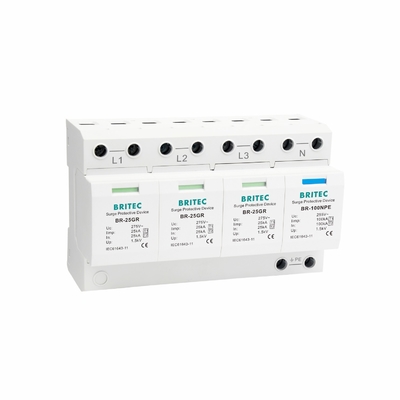

Combination: 4P, 3P, 2P, 1P, 1P+NPE, 3P+NPE.
Application:
Suitable for the Class 1.
The product is widely used in photovoltaic power stations, charging stations, residential buildings, mobile communication base stations, telecommunication rooms, industrial factories and mines and other total power supply systems, such as a variety of distribution stations, distribution rooms, distribution cabinets, AC and DC distribution panel, box transformer and other important and vulnerable to lightning strike equipment.
Widely used in mobile communication base stations, microwave communication bureaus/stations, telecommunication rooms, industrial mining, civil aviation, financial securities etc.
For various power distribution stations, power distribution rooms, power distribution cabinets, switch boxes etc.
Against surges on the electrical networks.
| Parameter | Details |
|---|---|
| Product Name | Type 1 Surge Protection Device |
| Protection Level | Type 1 |
| Number of Poles | 1P, 1P+N, 2P, 3P, 3P+N, 4P Optional |
| Voltage Rating | 275V, 320V, 385V, 440V |
| Humidity Rating | 95% |
| Response Time | ≤100ns |
| Weight | 0.5kg |
| Product Structure | Plug |
| Protection Class | IP20 |
| Operating Temperature | -40°C - 80°C |

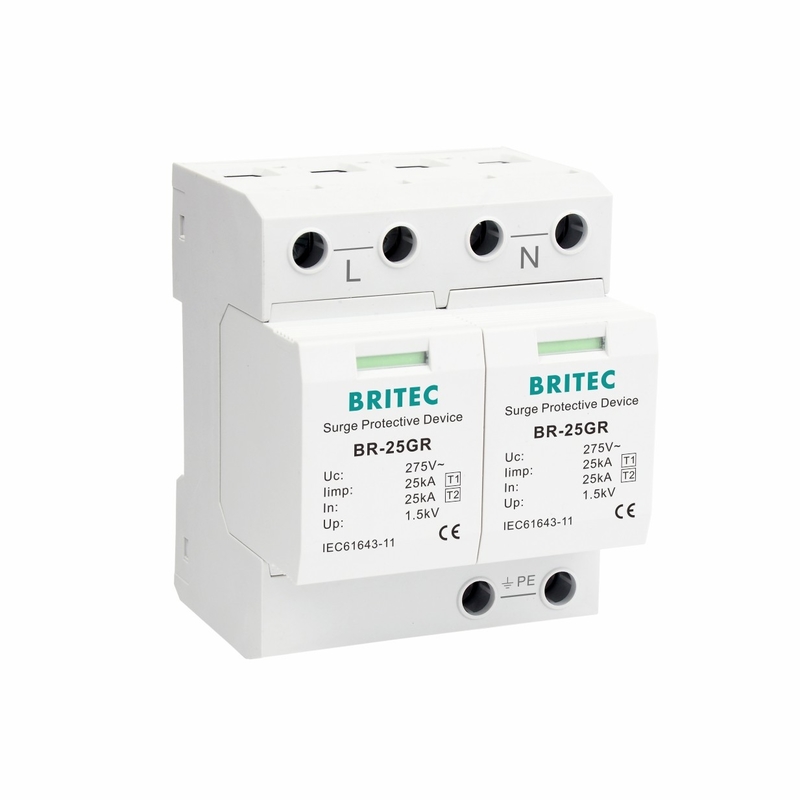

BRITEC BR-25GR 2P 25ka Surge Protection Device
This BRITEC BR-25GR 2P 25ka Surge Protection Device offers superior protection from lightning strikes and other surge events. It is designed to meet the most stringent requirements of UL 1449 and IEC61643-1. It is type 1 SPD with 25ka surge protector and has a response time of ≤100ns. It is certified with TUV/CB/CE/ROHS/ISO9001, and it has an operating temperature range of -40°C-80°C. The humidity rating is 95% and the protection class is IP20. The weight is 0.5kg. Minimum order quantity is 1PCS and the packaging is carton. Delivery time is 15 days after receipt of deposit and payment terms are TT. Supply ability is 1000000 per month.
We provide technical support and services for the Type 1 Surge Protection Device. Our services include:
We also provide technical training and customer service support for the Type 1 Surge Protection Device. We are available 24/7 to answer your questions and help you with any issues you may have.
