| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV/CB/CE/ROHS/ISO9001 |
| Model Number: | TY-40 110 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | 15 days after receipt of deposit |
| Payment Terms: | TT |
| Supply Ability: | 1000000 per month |
| Enclosure Material: | Thermoplastic UL94-V0 | Cross-section Area (Max.): | 35mm² |
|---|---|---|---|
| Voltage Protection Level: | ＜900V | Storage Temperature Range: | -40℃~+85℃ |
| Degree Of Protection: | IP20 | Operating Temperature Range: | -40℃~+85℃ |
| Maximum Discharge Current: | 40kA(8/20μs) | Rated Voltage: | DC |
| Highlight: | DC SPD pv surge protection device,IP20 Lightning Protection Surge Arrester,TY-40 110 Lightning Protection Surge Arrester |
||

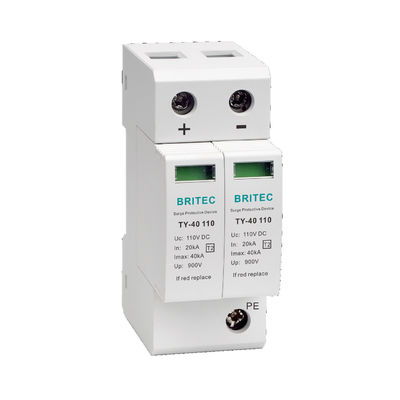

DC 110V 40kA Lightning Protector Type 2 Low Voltage Arrester Product detail:
| 2 Mod | TY-40 110 |
| SPD classification according to IEC61643-31 | Class II |
| Max. Continuous Operating Voltage Uc | DC 110V |
| Nominal discharge current (8/20us) In | 20kA |
| Max. discharge current (8/20us) Imax | 40kA |
| Voltage protection level Up | ＜900V |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ |
| Operating state / fault indication | green / red |
| Technology | MOV |
| Format | Plug-in modular |
| Protection Mode | +/PE,-/PE |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Degree of protection | IP20 |
| Standards compliance | IEC 61643-31 / EN 61643-31 / UL1449 ed.4/GB 18802.1 |
Dimension:
Company information:
Wenzhou Britec Electric Co., Ltd. is a manufacturer and exporter specialized in SPDs. Such as ac surge protector, dc surge protection, LED lighting surge arrester, data surge protective device and so on. Our company is located in Yueqing, Zhejiang, China. Convenient transportation, excellent quality and prices and good service attract customers from each place of the world. Our company culture is "sincere and trustworthy, punctuality, high - quality" Welcome every clients!
