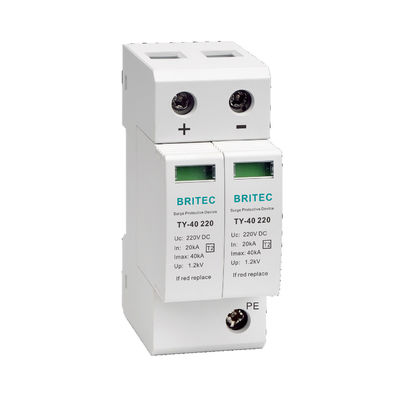

Name: TY-40 220 DC SPD Surge Protective Device Type 2 solar Surge Arrester DC 220V
Brand: Britec Electric Co., Ltd.
SKU: TY-40 220
Price: Negotiable USD
Availability: InStock

Home Products DC Surge Protection Device

TY-40 220 DC SPD Surge Protective Device Type 2 solar Surge Arrester DC 220V

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV/CB/CE/ROHS/ISO9001
Model Number:	TY-40 220

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	carton
Delivery Time:	15 days after receipt of deposit
Payment Terms:	TT
Supply Ability:	1000000 per month

Contact Now

Detailed Product Description

Rated Voltage:	DC	Operating State:	Green / Red
Enclosure Material:	Thermoplastic UL94-V0	Operating Temperature Range:	-40℃~+85℃
Maximum Discharge Current:	40kA(8/20μs)	Cross-section Area (Max.):	35mm²
Max. Continuous Operating Voltage:	DC 220V	Response Time:	≤25ns
Highlight:	TY-40 220 DC surge protective device , Type 2 Spd Surge Arrester , DC 220V Spd Surge Arrester

Dc 220V Surge Protector 40KA SPD Lightning Protection Device Features:

• Fast response time

• Pluggable module, consisting of a base and pluggable protection module

• Double tripping device, safe and reliable

• With failure display window, remote signaling can be configured

• 35mm din rail mounting, installation and maintenance is easy and convenient

• We can provide a variety of models for different DC power supplies

Dc 220V Surge Protector 40KA SPD Lightning Protection Device Product detail:

2 Mod	TY-40 220
SPD classification according to IEC61643-31	Class II
Max. Continuous Operating Voltage Uc	DC 220V
Nominal discharge current (8/20us) In	20kA
Max. discharge current (8/20us) Imax	40kA
Voltage protection level Up	＜1.2kV
Response time tA	≤25ns
Operating temperature range Tu	-40℃-80℃
Operating state / fault indication	green / red
Technology	MOV
Format	Plug-in modular
Protection Mode	+/PE,-/PE
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Degree of protection	IP20
Standards compliance	IEC 61643-31 / EN 61643-31 / UL1449 ed.4/GB 18802.1

Dimension:
DC 220V 40KA SPD Lightning Surge Protector With Failure Display Window 0

Dc 220V Surge Protector 40KA SPD Lightning Protection Device Application:

• Suitable for lightning protection of dc power distribution panel, DC distribution box and DC power supply equipment.

• Used to prevent damage caused by lightning overvoltage and transient overvoltage to secondary DC power supply system and electrical equipment.

Dc 220V Surge Protector 40KA SPD Lightning Protection Device Operating environment:

• Operating temperature: -40℃~+80℃

• Relative humidity:5%-95%

• Atmosphere pressure:70kPa~106kPa
