| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV/CB/CE/ROHS/ISO9001 |
| Model Number: | BR-50GR 3P |
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | 15 days after receipt of deposit |
| Payment Terms: | TT |
| Supply Ability: | 1000000 per month |
| Operation Voltage: | Low Voltage | Iimp: | 50kA |
|---|---|---|---|
| Number Of Poles: | 3P | Product Item: | Type 1 |
| Maximum Discharge Current: | 50kA | Mounting Method: | 35mm Din Rail |
| Fault Indication: | Green / Red | Oem: | Yes |
| Brand: | BRITEC | Part Name: | Type 1 Surge Protector |
| Highlight: | Type1 Power Surge Arrester,Surge Protective Device Type1,Surge Protective Device 3P |
||

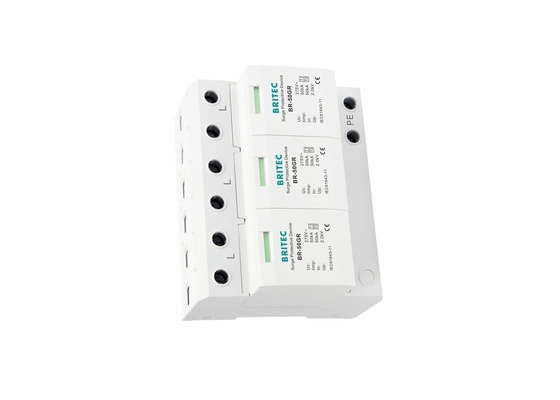

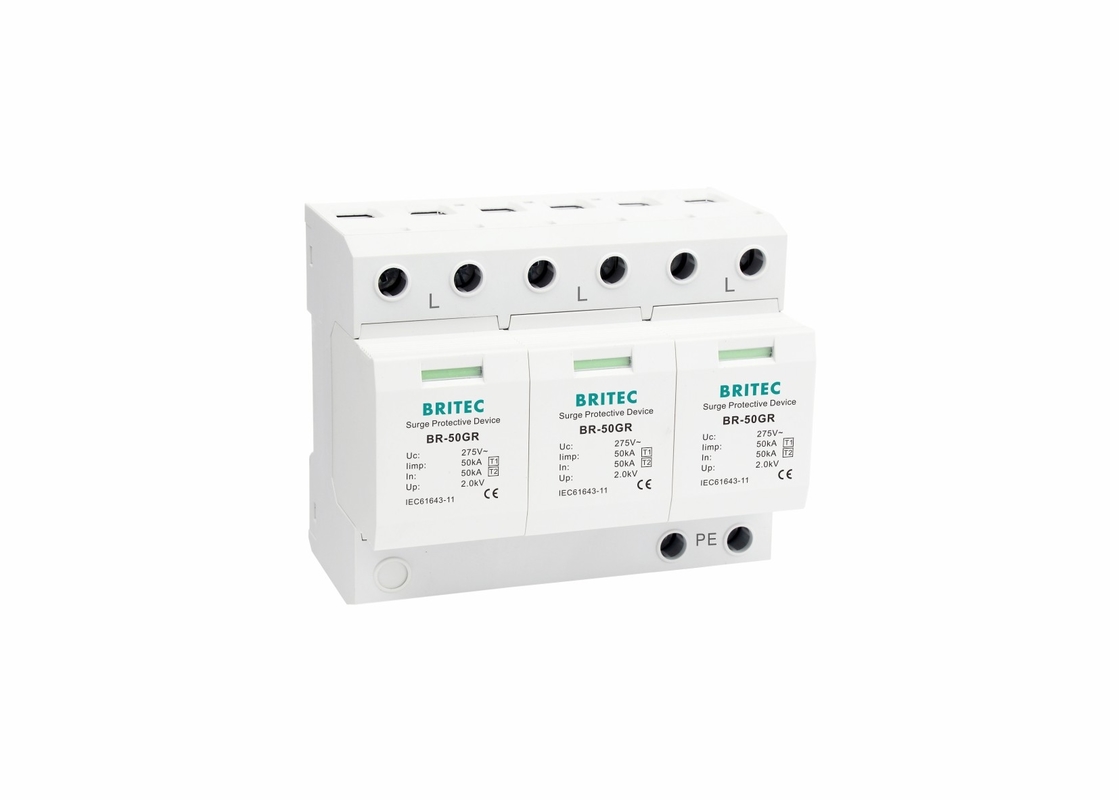

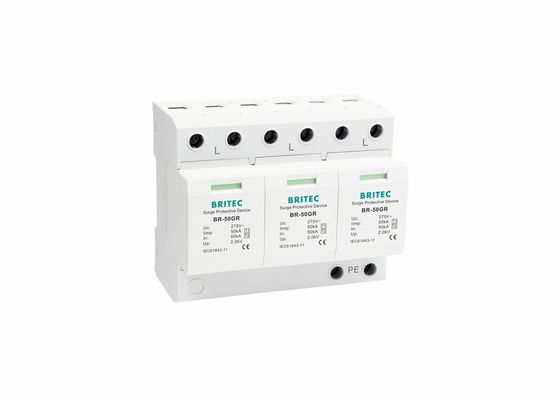

The Type 1 Surge Protection Device is an essential component for safeguarding your electrical systems from unexpected voltage surges. Designed and manufactured with the highest standards, this surge protective device is suitable for use in a variety of industrial and commercial applications.
With an impressive Iimp rating of 50kA, this surge protector is capable of handling high energy surges caused by lightning strikes or other external factors. This ensures that your sensitive equipment and devices are protected from damages and downtime due to power surges.
With a 35mm Din Rail mounting, it can be conveniently installed in different types of electrical panels or distribution boards. This makes it a cost-effective solution for both new and existing electrical systems.
One of the key features of this surge protection device is its fault indication system. The green and red LED lights provide a clear indication of the device's status, making it easy to identify any potential issues. This allows for quick troubleshooting and maintenance, helping to minimize downtime and ensure the continuous operation of your systems.
As an OEM product, this surge protector can be customized to meet specific requirements and specifications. This allows for seamless integration into your existing electrical systems, providing reliable surge protection without compromising on the overall system design.
In summary, the Type 1 Surge Protection Device is a highly efficient and dependable solution for protecting your electrical systems from surges. Its high Iimp rating, easy installation, and fault indication system make it a top choice for industrial and commercial applications.
| Specification | BR-50GR 3P |
| Item name | Surge Arrester |
| SPD dassification according to EN61643-11 | Type 1 + Type 2 |
| SPD dassification according to IEC61643-11 | Class I + Class II |
| Max continuous 0perating a.c. voltage Uc | 275V |
| Lightning impulse current (10/350µs) limp | 50kA |
| Norminal discharge current (8/20µs) In | 50kA |
| Maximun discharge current (8/20µs) Imax | 200kA |
| Voltage protection level Up | ≤2.0kV |
| Follow current extinguishing capability a.c. lifi | 25kA rms |
| Max. backup fuse | 350A gG |
| Response time tA | ≤100ns |
| For mounting on | 35mm Din rail |
| Degree of protection | IP20 |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 4mm² |
| Cross-section area (Max.) | 35mm² |
| Enclosure material | Thermal plastic UL94-V0 |
Product Name: Type 1 Surge Protection Device
Mounting Method: 35mm Din Rail
Operation Voltage: Low Voltage
Safety Standard: IEC61643-11
Number Of Poles: 3P
50ka surge protector
Modular design
- Designed to protect electrical and electronic equipment from power surges caused by lightning strikes, power outages, and other electrical disturbances. It is an essential component for any building or facility that relies on sensitive equipment to function properly.
- This model is ideal for use in commercial, industrial, and residential applications.
- It suitable for use in a wide range of applications, including commercial buildings, industrial facilities, and residential homes.
- It suitable for use in areas with high lightning activity or frequent power surges.
