| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV/CB/CE/ROHS/ISO9001 |
| Model Number: | BR-50GR 2P |
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | 15 days after receipt of deposit |
| Payment Terms: | TT |
| Supply Ability: | 1000000 per month |
| Mounting: | DIN Rail 35 Mm. | Application: | AC System |
|---|---|---|---|
| Protection Level Up: | 2.0 KV | Iimp: | 50kA |
| Installation Type: | Mounting On DIN Rail 35mm | Response Time: | Less Than 100ns |
| Enclosure Material: | Thermoplastic | Oem: | Yes |
| Model Number: | BR-50GR 2P | Origin: | Wenzhou |
| Highlight: | SPD Surge Protective Device,50KA Surge Protective Device,Thermoplastic 3 Phase Surge Protector |
||
A surge protection device, also known as a surge protector or SPD, is an essential component in protecting electrical equipment from the damaging effects of power surges. Type 1 SPDs are specifically designed for use in AC systems, providing reliable protection against overvoltage events caused by lightning strikes or other electrical disturbances.
Our Type 1 surge protection device offers top-of-the-line protection for your electrical system. With a protection class of IP20, this device is suitable for use in indoor environments. It is also classified as a Type 1 SPD, indicating its high level of protection and ability to handle surges up to 50kA.
The installation process for our Type 1 SPD is quick and easy, as it is designed for mounting on a DIN rail with a width of 35mm. This allows for a secure and space-saving installation in your AC system.
Don't leave your AC system vulnerable to lightning strikes and other power surges. Invest in our Type 1 surge protection device and protect your valuable equipment today.

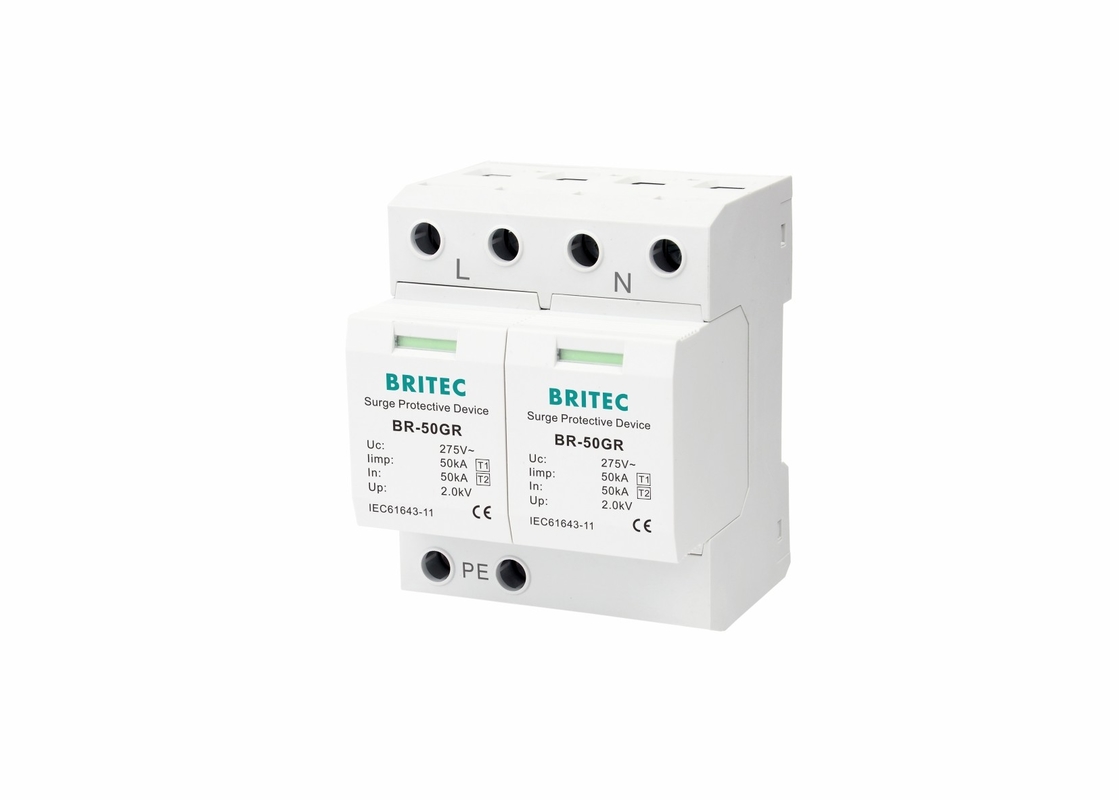

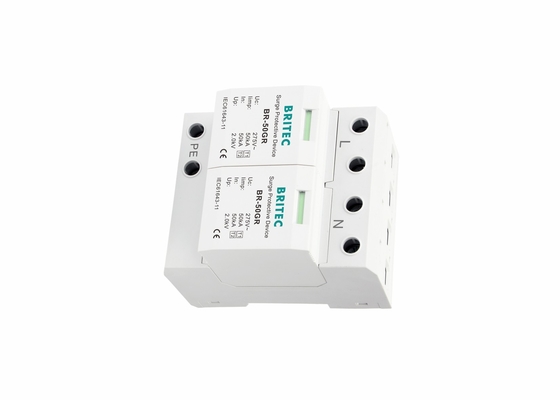

| Specification | BR-50GR 2P |
| Item name | Surge Arrester |
| SPD dassification according to EN61643-11 | Type 1 + Type 2 |
| SPD dassification according to IEC61643-11 | Class I + Class II |
| Max continuous 0perating a.c. voltage Uc | 275V |
| Lightning impulse current (10/350µs) limp | 50kA |
| Norminal discharge current (8/20µs) In | 50kA |
| Maximun discharge current (8/20µs) Imax | 200kA |
| Voltage protection level Up | ≤2.0kV |
| Follow current extinguishing capability a.c. lifi | 25kA rms |
| Max. backup fuse | 350A gG |
| Response time tA | ≤100ns |
| For mounting on | 35mm Din rail |
| Degree of protection | IP20 |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 4mm² |
| Cross-section area (Max.) | 35mm² |
| Enclosure material | Thermoplastic UL94-V0 |
Product Name: Type 1 Surge Protection Device
Enclosure Material: Thermoplastic
Iimp: 50kA
Protection Class: IP20
Location: Indoor
Mounting: DIN Rail 35 Mm
BRITEC Type 1 Surge Protection Device is specially designed for industrial and commercial applications to protect electrical equipment from damages caused by lightning strikes. With its high surge current handling capacity of 50kA, it provides reliable protection for power distribution systems in various settings.
In industrial settings, where heavy-duty electrical equipment is used, the risk of damage from lightning strikes is high. BRITEC Type 1 SPDs provide a first line of defense against surge events, ensuring the safety of your equipment and peace of mind for your operations. It can be used in a range of industries including manufacturing, mining, oil and gas, and more.
Commercial buildings, such as offices, shopping malls, and hotels, also require protection from lightning strikes. BRITEC Type 1 Surge Protection Device is a cost-effective solution to protect the electrical systems of these buildings. It can be easily installed in the main power distribution panel, providing protection for the entire building.
BRITEC Type 1 SPDs are designed to be installed at the main power distribution panel, providing protection for the entire system. It can handle high surge currents and protect the system from damage, ensuring the stability and safety of the power distribution system.
The Type 1 Surge Protection Device is carefully packaged to ensure its safe arrival to our customers. The packaging is designed to withstand rough handling during shipping and protect the device from any damage.
For international orders, the product is packed according to international shipping regulations and customs requirements.
Our shipping partners are reputable and experienced couriers who specialize in delivering delicate electronic equipment. They handle each package with care and use the most efficient shipping methods to ensure timely delivery.
Customers can choose from a variety of shipping options at checkout, including standard and expedited shipping.
Once the package is shipped, customers will receive a tracking number to monitor the status of their delivery. We strive to provide a seamless and hassle-free shipping experience.
For any questions or concerns regarding packaging and shipping, please contact our customer service team. We are committed to providing the best service possible and ensuring that our products arrive safely to our customers.
Q: What is the brand name of this product?
A: The brand name of this product is BRITEC.
Q: What is the model number of this product?
A: The model number of this product is BR-50GR 2P.
Q: Where is this product manufactured?
A: This product is manufactured in China.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 100 pieces.
Q: How is this product packaged?
A: This product is packaged in a carton.
Q: What is the delivery time for this product?
A: The delivery time for this product is 15 days after receipt of deposit.
Q: What are the payment terms for this product?
A: The payment terms for this product are TT.
Q: What is the supply ability for this product?
A: The supply ability for this product is 1000000 per month.
