| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV |
| Model Number: | BR-50GR 385 4P |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | 3 Phase Surge Protection Device | Response Time: | ≤25 Ns |
|---|---|---|---|
| Enclosure Material: | Thermoplastic, UL94 V‐0 | SPD According: | Type 1+Type 2 |
| Certificate: | TUV,CE,CB,IEC Etc | Type Of Current: | AC |
| MOQ: | 1PCS | ||
| Highlight: | China type 1surge protection device |
||

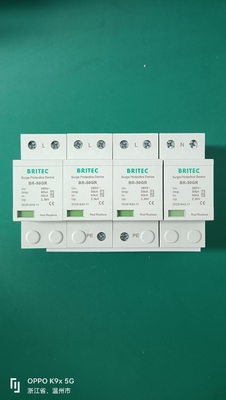

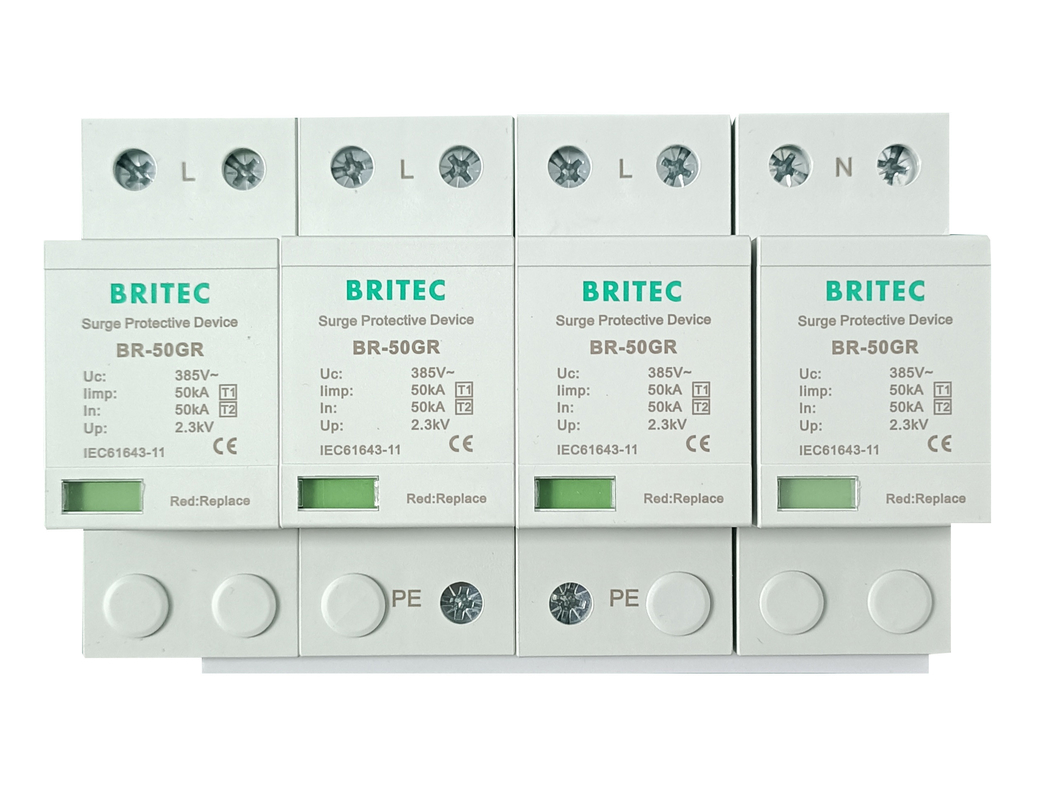

50kA three phase Type 1 Surge Protection Device TUV certificated
Ac Lighting Type 1 Surge Protection Device :
Surge protection device(SPD) is an indispensable device for lightning protection of electronic equipment. It is used to limit the instantaneous overvoltage of the power line and signal transmission line to the voltage range that the equipment or system can withstand, or a powerful lightning current drains into the ground to protect the protected equipment or system from impact and damage.
Ac Lighting Type 1 Surge Protection Device Technology characteristic:
| Specification | BR-50GR 4P |
| Item name | Surge Arrester |
| SPD dassification according to EN61643-11 | Type 1 |
| SPD dassification according to IEC61643-11 | Class I |
| Max continuous 0perating a.c. voltage Uc | 385V |
| Lightning impulse current (10/350µs) limp | 50kA |
| Norminal discharge current (8/20µs) In | 50kA |
| Voltage protection level Up | 2.3kV |
| Follow current extinguishing capability a.c. lifi | 3kA rms |
|
Max. backup fuse |
500A gG |
|
Response time tA |
≤100ns |
| For mounting on | 35mm Din rail |
| Degree of protection | IP20 |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 4mm² |
| Cross-section area (Max.) | 35mm² |
|
Enclosure material |
Thermoplastic UL94-V0 |
We can produce according to your requirements.
For the lowest price please contact us.
Our products have CE, TUV, CB,RoHS certification and ISO9001 quality mangement system.
Other type for choose:
1,Maximum discharge current:20kA,40kA,80kA,100kA,120kA,200kA
2,Number of poles:1P,1P+N ,2P,3P,3P+N, 4P
3,Maximum continuous operating voltage Uc: 150V,275V,320V,385V ,440V,550V,800V,1000V
Our Main Product
Type 1 surge protection device.
Type 2 surge protection device.
Type 1 + Type 2 surge protection device.
Type 3 surge protection device.
Type 2 + Type 3 surge protection device.
DC (pv, solar) surge protection device.
BRITEC is a real AC&DC surge protection device (SPD) manufacturer, also provide OEM/ODM service. some of the products approved by TUV, CB, CE, EAC according to IEC 61643-11 and EN 61643-11.
T1, Class B, Class I, Iimp(10/350μs): 25kA/50kA
T1+T2, Class B+C, Class I+II, Iimp(10/350μs): 12.5kA/25kA
T2, Class C, Class II, Imax(8/20μs): 20/40/80/100/120/200kA
T3, Class D, Class III, Uoc(1.2/50μs): 10kV, In(8/20μs): 5kA, Imax(8/20μs): 10kA
Q1. Does your products listed for safety?
A: Yes, we have TUV, CE, CB these certifications.
Q2. What is the lead time for sample and mass order?
A: Samples is 10 days, and 20 days for mass order.
Q3. Do you accept the OEM / ODM order?
A: Yes.
Q4. Do you have MOQ for order?
A: General our MOQ is 5 piece, but we can accept 1 piece as sample order.
Q5. Can we visit your factory before we cooperate with you?
A: Of course. Welcome to your visiting to our factory.
Contact Person: Lucky
BR-40 2P Surge Protection Device Class II Spd 275v lightning surge protector varistor surge arrester
BR-40 1+1 DIN Rail Type 2 Surge Protection Device Spd Lightning Protection
BR-40 48 DC SPD Surge Protection Device Dc Surge Suppressor 40kA 48v Pv Surge Arrester

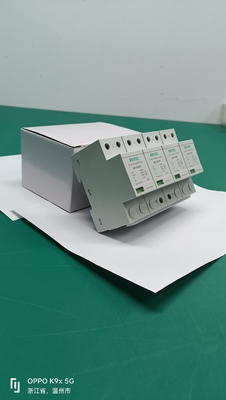

BR-50GR 4P Ac Lighting protection China type 1 surge protection device Spd Surge Filter spd t1 t2
