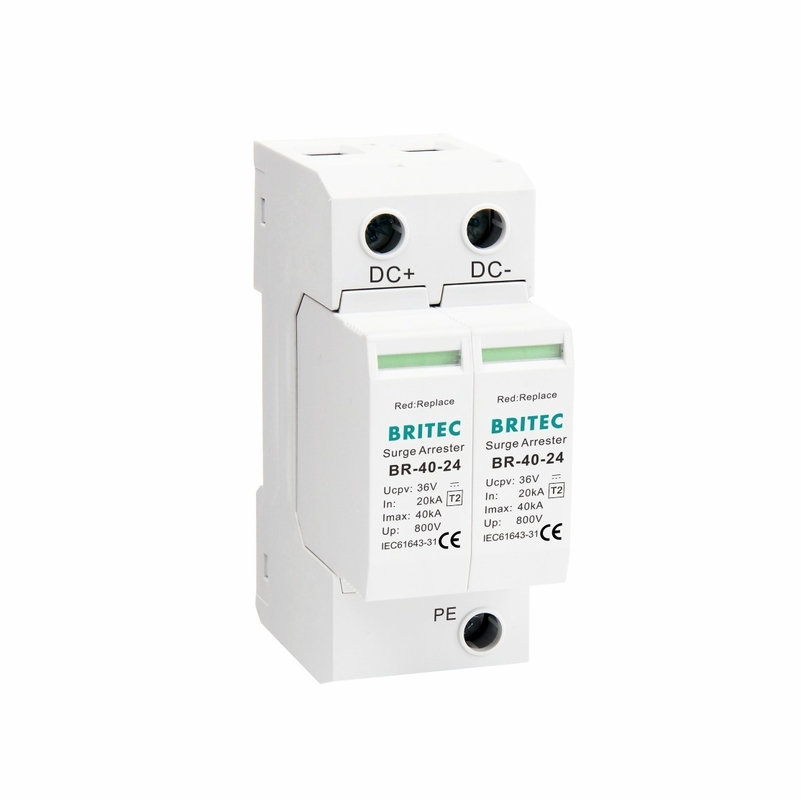

BR-40 24 PV Surge Arrester Dc Surge Protector Solar Surge Protection Device

Product Description:

Our PV Surge Arrester is designed for easy mounting on a 35mm Din rail, making it simple to install and integrate into your existing PV setup. With a protection degree of IP20, you can be confident that your equipment is safe from moisture and dust, ensuring optimal performance and longevity.

With a Type 2/Class II classification, our PV surge protection device is designed to protect against indirect lightning strikes and other power disturbances that can damage your PV system. Whether you're using your PV system for residential or commercial purposes, our PV lightning arrester is an essential component to ensure reliable and effective performance.

Our PV Surge Arrester is suitable for use in a variety of PV applications, including solar power plants, residential PV systems, and commercial PV installations. With its robust construction and high-quality materials, you can be confident that your PV system is protected against power surges and other electrical disturbances that can cause damage and downtime.

When it comes to transporting our PV Surge Arrester, we offer a range of options to suit your needs. Whether you prefer to transport your equipment by air, by sea, or through an express courier service, we can provide fast and reliable shipping to ensure that your equipment arrives quickly and safely.

Protect your PV system with our PV Surge Arrester – the reliable and effective solution for safeguarding your equipment against power surges, lightning strikes, and other electrical disturbances. Order yours today and experience the peace of mind that comes with knowing that your PV system is fully protected.

Features:

• Product Name: PV Surge Arrester
• Class: Type 2
• Temperature Range: -40°C - 80°C
• Transport: By Air, By Sea Or Express
• Ucpv: 36V
• Warranty: 5 Years

The PV Surge Arrester is a type 2 solar surge protective device designed to protect photovoltaic systems from lightning-induced surges and other electrical disturbances. It has a temperature range of -40°C - 80°C and can be transported by air, sea, or express. Its Ucpv is 36V and it comes with a 5-year warranty.

Technical Parameters:

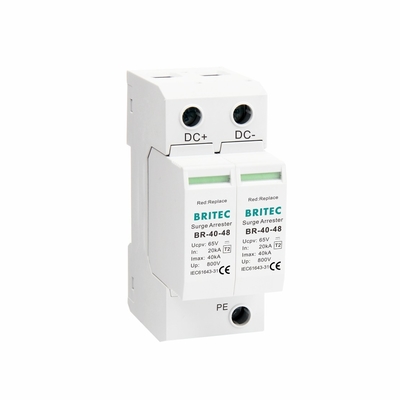

Other type for choose:
1,Maximum discharge current:40kA,50kA,
2,Number of poles:2P,3P,
3,Maximum continuous operating dc voltage:24V,48V,110V,150V,220V, 600V,1000V,1500V ,

4,Lightning impulse current(10/350us):12.5kA,5kA

DC surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system).These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.High energy MOVs equipped with specific thermal disconnectors and related failure indicators.

Applications:

The PV Surge Arrester is a Type 2 surge protection device that can withstand a maximum working voltage of 36V. It has a protection degree of IP20, making it suitable for indoor use.

BR-40 24 is an essential device for anyone with a PV System. It is designed to protect the system from lightning strikes and electrical surges that can cause significant damage to the system.

The PV Surge Arrester can be used in a variety of occasions and scenarios, including residential and commercial PV Systems. It is also suitable for use in industrial and agricultural settings where PV Systems are used.

The product comes with a minimum order quantity of 1PCS and is packaged in a carton for safe delivery. Delivery time is 15 days after receipt of deposit, and payment terms are TT.

BRITEC has a supply ability of 1000000 per month, making it easy to get your hands on this essential PV surge protection device.

Shipping terms for the product include TNT, DHL, FEDEX, EMS, and UPS.

Overall, BRITEC BR-40 24 is an excellent PV Surge Arrester that provides reliable protection for PV Systems. It is a must-have for anyone looking to protect their system from electrical surges and lightning strikes.

Support and Services:

The PV Surge Arrester is designed to protect photovoltaic systems from overvoltages caused by lightning or switching operations. Our technical support team is available to assist with any questions regarding installation, operation, or troubleshooting. Additionally, we offer servicing and repair services for the PV Surge Arrester to ensure it continues to function properly and protect your solar system for years to come. Contact us for more information on our technical support and services.
