| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV/CB/CE/ROHS/ISO9001 |
| Model Number: | BR-40 110 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | 15 days after receipt of deposit |
| Payment Terms: | TT |
| Supply Ability: | 1000000 per month |
| Humidity Range: | ≤95%RH | Degree Of Protection: | IP20 |
|---|---|---|---|
| Max. Continuous Operating Voltage: | DC 180V | Storage Temperature Range: | -40℃~+85℃ |
| Operating Temperature Range: | -40℃~+85℃ | Format: | Plug-in Modular |
| Enclosure Material: | Thermoplastic UL94-V0 | Response Time: | ≤25ns |
| Highlight: | 110v dc surge protection device,110v dc surge arrester |
||
With a maximum discharge current of 40kA(8/20μs), this surge protection device is capable of handling even the most powerful surges. It also has a response time of ≤25ns, which means that it can react quickly to protect your system before any damage can occur.
The DC Surge Protection Device is designed to withstand harsh environments. It has a storage temperature range of -40℃~+85℃, which means that it can operate in extreme heat or cold. The enclosure material is made of thermoplastic UL94-V0, which is a high-quality material that can resist fire and prevent flames from spreading. The device can also withstand humidity levels of up to 95%RH, making it suitable for use in areas with high levels of moisture.
Installing the DC Surge Protection Device is simple and straightforward. It can be easily connected to your solar panel system and will provide reliable protection against surges. With this device in place, you can rest assured that your equipment will be safe and secure.
Protect your DC system with this reliable dc spd. This 110v surge arrester has a plug-in modular format and a minimum cross-section area of 4mm². It has a response time of ≤25ns and a maximum discharge current of 40kA(8/20μs). Its storage temperature range is -40℃~+85℃.
| Product Name: | DC Surge Protection Device |
| Max. Continuous Operating Voltage: | DC 180V |
| Voltage Protection Level: | 900V |
| Maximum Discharge Current: | 40kA(8/20μs) |
| Response Time: | ≤25ns |
| Cross-section area (Max.): | 35mm² |
| Format: | Plug-in Modular |
| Humidity Range: | ≤95%RH |
| Storage Temperature Range: | -40℃~+85℃ |
| Degree of protection: | IP20 |

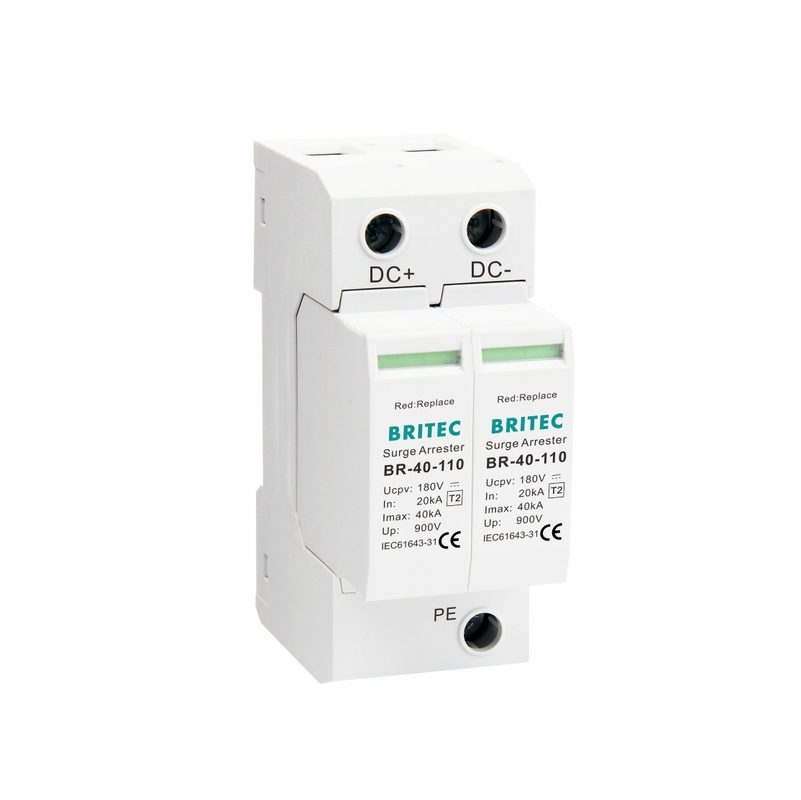

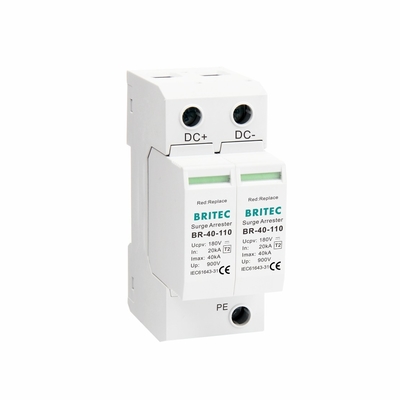

BRITEC BR-40 110 DC surge protection device is a plug-in modular type surge protector for PV systems. It is designed to protect the solar panels, inverters, and other equipment from voltage surges caused by lightning strikes, electrostatic discharge, and other electrical disturbances. It is a must-have device for any PV system to ensure the safety and reliability of the equipment.
The DC surge protection device is suitable for various application occasions and scenarios, such as:
With the certification of TUV/CB/CE/ROHS/ISO9001, customers can be assured of the high quality and safety of the product. The minimum order quantity is only 1PCS, and the packaging details are in carton, which is convenient for transportation and storage. The delivery time is 15 days after receipt of deposit, and the payment terms are TT. The supply ability is 1000000 per month.
The DC surge protection device has a voltage protection level of 900V and can handle a maximum cross-section area of 35mm². It can operate in a wide temperature range from -40℃ to +85℃, making it suitable for various environmental conditions.
Overall, the BRITEC BR-40 110 DC surge protection device is an essential component for any PV system. It provides reliable protection against voltage surges and ensures the safety and longevity of the equipment. It is an excellent choice for customers who are looking for a high-quality pv surge protector or lightening protector for their PV system.
The DC Surge Protection Device is designed to protect your sensitive electronic equipment from power surges and spikes caused by lightning strikes or other electrical disturbances. Our product offers reliable protection and comes with technical support and services to ensure that you get the most out of your investment. Our team of experts is available to answer any questions you may have about installation, maintenance, or troubleshooting. We also offer training and educational resources to help you better understand the capabilities and limitations of our product. With our comprehensive support and services, you can rest assured that your electronic equipment is safe and protected.
Q: What is the brand name of the DC surge protection device?
A: The brand name of the DC surge protection device is BRITEC.
Q: What is the model number of the DC surge protection device?
A: The model number of the DC surge protection device is BR-40 110.
Q: Where is the DC surge protection device manufactured?
A: The DC surge protection device is manufactured in China.
Q: What certifications does the DC surge protection device have?
A: The DC surge protection device has TUV, CB, CE, ROHS, and ISO9001 certifications.
Q: What is the minimum order quantity for the DC surge protection device and how is it packaged?
A: The minimum order quantity for the DC surge protection device is 1 piece and it is packaged in a carton.
Q: What is the delivery time for the DC surge protection device and what are the payment terms?
A: The delivery time for the DC surge protection device is 15 days after receipt of deposit and the payment terms are TT.
Q: What is the supply ability of the DC surge protection device?
A: The supply ability of the DC surge protection device is 1000000 per month.
