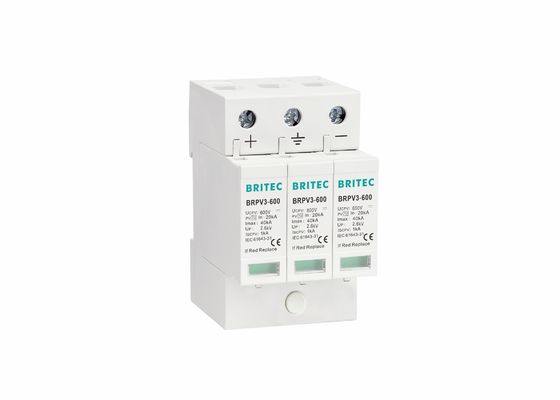

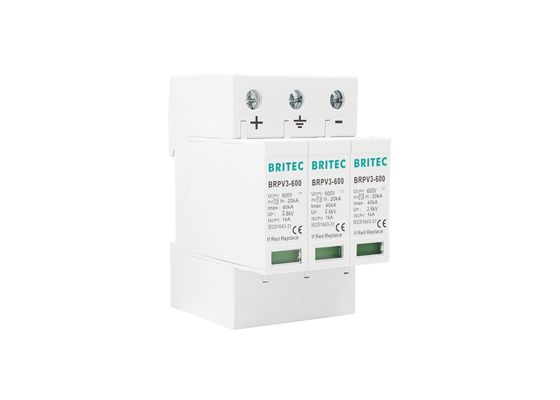

Photovoltaic 600V DC Surge Protection Device SPD 20KA 40KA For PV System

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BRPV3-600

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	EN61643-31 / IEC61643-31	Ucpv:	600V
In:	20kA	Imax:	40kA
Material:	Thermal Plastic UL94-V0	TA:	≤25ns
Mounting On:	35mm Din Rail	Up:	≤2.6kV
Tu:	-40℃...+80℃	Item:	DC Surge Protection Device
Highlight:	dc surge arrester , dc surge suppressor

PV System 20KA 40KA Photovoltaic 600V 3P DC Surge Protective Device SPD

Photovoltaic 600V DC Surge Protection Device SPD Feature:

• PV voltage up to 600Vdc.

• According to type 2 / class II EN61643-31 and IEC61643-31.

• With remote indication contact.

• Optical status indicator via LED.

• Designed for 35 mm DIN rails.

• High temperature and resistant flame retardant plastic shel.

• BRPV3-600 are designed to protect against lightning surge voltages in photovoltaic power supply networks.

• Lightning protection main device and the base can be separated, is pluggable type.

Photovoltaic 600V DC Surge Protection Device SPD Product Details:

	BRPV3 600
SPD classification according to EN61643-31	Type 2
SPD classification according to IEC61643-31	Class II
Max. continuous operating dc voltage Ucpv	600V
Nominal discharge current (8/20us) In	20kA
Max. discharge current (8/20us) Imax	40kA
Voltage protection level [(DC+/DC-)→PE] Up	≤2.6kV
Response time tA	≤25ns
Operating temperature range Tu	-40℃-80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20
Order Code	B8009
Order code(With remote signal)	B8011

Dimension:

Photovoltaic 600V DC Surge Protection Device SPD Application:

• Protect against lightning surge voltages in solar system (photovoltaic power supply system).

• Suitable for the new energy wind power generation system.

• Suitable for solar DC power distribution system of lightning protection, such as solar PV combiner box, PV DC power distribution cabinet, grid tie inverter, etc.

• Widely used in the DC power lightning protection of solar power systems, mobile communication base stations, microwave communications bureau, telecommunications room, plant, civil aviation, finance, securities and other system.

Photovoltaic 600V DC Surge Protection Device SPD Advantage:

• Related failure indicators.

• The remote signal port can achieve remote alarm control.

• Modular design for ease of maintenance.

• Less maintenance and long service life.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Photovoltaic 600V DC Surge Protection Device SPD Installation instruction:

• Installed on the fount of the low-voltage distribution system.

• Installed in the main power system at DC circuit,to protect against the indirect lighting current,direct lighting current or other instantaneous over voltage.

• Must be installed in parallel on the DC networks to be protected and provide common and different modes protection.

• Its installed location are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.

Company profile:

Wenzhou Britec Electric Co., LTD. a Chinese professional SPD manufacture company. Our company was established in 2003, is China's professional produce low voltage surge arrester of enterprises. Welcome the friends from anywhere in the world, as long as you have about surge protection device demand, please contact us!

Photovoltaic 600V DC Surge Protection Device SPD 20KA 40KA For PV System 1

Workshop show:

Photovoltaic 600V DC Surge Protection Device SPD 20KA 40KA For PV System 2

Certifications:

Photovoltaic 600V DC Surge Protection Device SPD 20KA 40KA For PV System 3

FAQ:

Q1: What is the lead time?
A: Generally it will take about 20 days for production depending on the quantity.

Q2: How long is the warranty of your products?
A: 2-year warranty for SPDs.

Q3: Are you trading company or manufacturer?

A: We are factory.

Q4: Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample, but we will charge the sample fee and the cost of freight.
