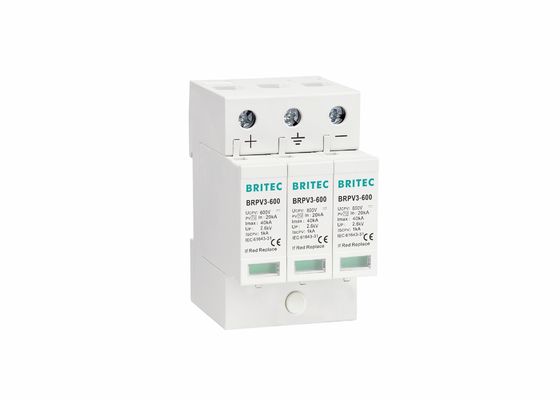

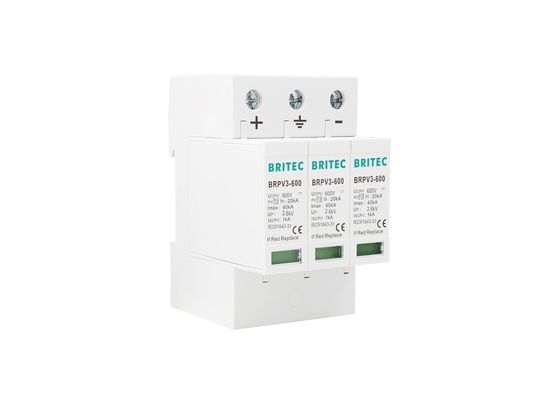

Name: Thermal Plastic IEC61643-31 600VDC 40kA Pv Surge Protector Lightning Protection
Brand: Britec Electric Co., Ltd.
SKU: BRPV3-600
Price: Negotiable USD
Availability: InStock

Home Products PV Surge Arrester

Thermal Plastic IEC61643-31 600VDC 40kA Pv Surge Protector Lightning Protection

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BRPV3-600

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	EN61643-31 / IEC61643-31	Ucpv:	600V
Imax:	40kA	Up:	≤2.6kV
Material:	Thermoplastic UL94-V0	TA:	≤25ns
Degree Of Protection:	IP20	Mounting On:	35mm Din Rail
Tu:	-40℃...+80℃	Cross-section Area:	4—35mm²
Highlight:	40kA pv surge protector , 600VDC pv surge protector , 40kA PV Surge Arrester

DC Power Applications Up to 600VDC 40kA DC SPD for Photovoltaic Systems PV Solar Panel

DC Power Applications Up to 600VDC 40kA DC SPD Main Features:

• Type 2 surge protector for photovoltaic system.

• The device is compliant with PV standard IEC61643-31.

• Imax - 40kA/pole (8/20 waveform).

• The din rail mounted SPD is widely used in solar combiner boxes to protect the solar panels and inverters from surges in voltage and lightning.

• Ucpv - 600V DC.

• According to the different DC power supply, various corresponding specifications can be selected and can be applied to multichannel DC power supply system through a variety of combinations.

• Up -2.6kV.

• In terms of material, we choose the brand components and make use of advanced production technology.

• Fast clamp response, under 25ns.

• Level of protection is IP20

• No leakage, no operating currents.

• Solar 2P DC SPD Surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system).

• High energy anti-surge components MOV.

• The shell is made of PC flame retardant material, fire insulation

• State-of-the-art surge protection technology.

• Failure status indicator, green/red.

• Tele signalization indicator for remote failure alerts (optional).

• DIN rail mounting, pluggable module, convenient replacement

DC Power Applications Up to 600VDC 40kA DC SPD Product Details:

	BRPV3 600
SPD classification according to EN61643-31	Type 2
SPD classification according to IEC61643-31	Class II
Max. continuous operating dc voltage Ucpv	600V
Nominal discharge current (8/20us) In	20kA
Max. discharge current (8/20us) Imax	40kA
Voltage protection level [(DC+/DC-)→PE] Up	≤2.6kV
Response time tA	≤25ns
Operating temperature range Tu	-40℃-80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Degree of protection	IP20
Order Code	B8009
Order code(With remote signal)	B8011

Technology characteristic:

Thermal Plastic IEC61643-31 600VDC 40kA Pv Surge Protector Lightning Protection 0

DC Power Applications Up to 600VDC 40kA DC SPD Installation Notes:

• Installation must be performed only by electrically skilled operator.

• Its installed location are recommended at both ends of the dc power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.

• For best performance, mount protector in parallel with the equipment it is protecting as close as possible. (*Note: If protector is to be located outdoors and exposed to elements, mount protector inside a suitable weatherproof enclosure.)

• Green tab, normal work status, Red tab, failure status, need to be replaced rapidly.

Working principle of product:

In the solar photovoltaic system, the inductive or capacitive coupling voltage is caused by the lightning shock and the switching operation of the upstream power supply system. Therefore, the surge may damage the photovoltaic modules and inverters, which will cause serious consequences for the operation of the photovoltaic system. The photovoltaic lightning arrester is specially developed for this purpose. The lightning protection module of the DC power supply, once the high voltage, and endanger the insulation of the protected equipment, the lightning arrester acts immediately, and the high voltage impact current is directed to the earth, thus limiting the amplitude of the voltage and protecting the insulation of the equipment. When the overvoltage is gone, the arrester is restored to its original state quickly, so as to protect the power equipment.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Company profile:

Wenzhou Britec Electric Co.,Ltd is a company specialized in SPD products for many years; Using the brand for many years exporting of which it's experience enables Britec the ability to know what customers need, what end users need. Top quality and best services is our first and formost belief. welcome to cooperate with us, welcome to join us!

Thermal Plastic IEC61643-31 600VDC 40kA Pv Surge Protector Lightning Protection 1

Workshop show:

Certifications:

FAQ:

1. Who are we?
A: We are based in Yueqing, Zhejiang, China, start from 2003, sell to Europe, South America, Mid East, Southeast Asia, Africa.

2. How can we guarantee quality?
A: Always final Inspection before shipment;

3. What can you buy from us?
A: All kinds of SPDs.

4. Why should you buy from us not from other suppliers?
A: Focus on customer service always!

5. What services can we provide?
A: Accepted Delivery Terms: FOB, CIF, EXW
Accepted Payment Currency:USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, PayPal;
Language Spoken:English, Chinese
