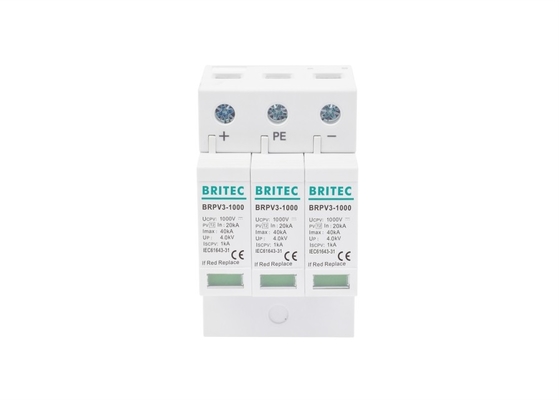

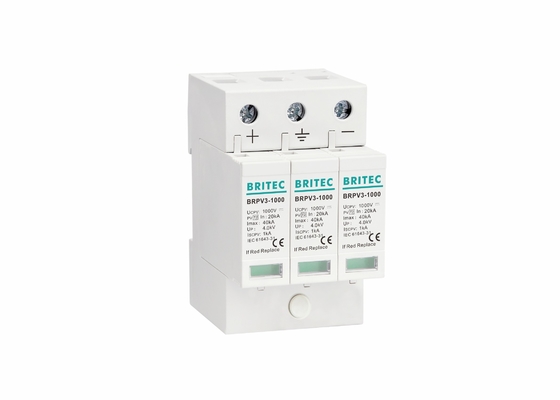

Name: 40ka 1000V Class II 3P PV Surge Arrester Protector 35mm Din Rail Mount
Brand: Britec Electric Co., Ltd.
SKU: BRPV3-1000
Price: Negotiable USD
Availability: InStock

Home Products PV Surge Arrester

40ka 1000V Class II 3P PV Surge Arrester Protector 35mm Din Rail Mount

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BRPV3-1000

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Standard:	EN61643-31 / IEC61643-31	Material:	Thermoplastic UL94-V0
Max Voltage:	1000V	Imax:	40kA
Module:	3	Operating State/fault Indication:	Green/red
Operating Temperature:	-40℃...+80℃	Degree Of Protection:	IP20
Mounting On:	35mm Din Rail	Cross-section Area:	4—35mm²
Highlight:	3P PV Surge Arrester , Class II PV Surge Arrester , 3P pv surge protector

40ka 1000V Class II 3P Solar Power Surge Protector Device for Solar System IP20

40ka 1000V Class II 3P Solar Power Surge Protector Device Description:

• Pluggable design, easy replaced without any tools.

• BRPV3-1000 series PV Surge Protective Device 40KA DC 1000V SPD suitable for the new energy wind power generation system

• High surge current capability with 8/20 us waveform, Imax 40kA.

• Its working voltage covers 500V, 600V, 800V, 1000V and 1500V.

• Visual status indication and optional remote signal contact.

• It is installed in the main power system at DC circuit, to protect against the indirect lighting current, direct lighting current or other instantaneous over voltage.

• Comply with IEC 61643-31

40ka 1000V Class II 3P Solar Power Surge Protector Device Product Details:

	BRPV3 1000
SPD classification according to EN61643-31	Type 2
SPD classification according to IEC61643-31	Class II
Max. continuous operating dc voltage Ucpv	1000V
Nominal discharge current (8/20us) In	20kA
Max. discharge current (8/20us) Imax	40kA
Voltage protection level [(DC+/DC-)→PE] Up	≤4.0kV
Response time tA	≤25ns
Operating temperature range Tu	-40℃-80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Degree of protection	IP20
Order Code	B8010
Order code(With remote signal)	B8012

Technology characteristic:

40ka 1000V Class II 3P PV Surge Arrester Protector 35mm Din Rail Mount 0

40ka 1000V Class II 3P Solar Power Surge Protector Device Features:

a. Module design, convenient installation, with easy electric maintains operation

b. The 1000V T2 DC SPD BRPV3-1000 is developed according to the newest PV standard IEC 61643-31: Low-voltage surge protective devices-Part 31: Requirements and tests methods for SPDs for photovoltaic applications.

c. Small creepage current, fast response time, remnant low voltage

d. Thermal disconnect for fault indication

e. With remote connection, can realize remote control

40ka 1000V Class II 3P Solar Power Surge Protector Device Application:

• BRPV3-1000 is a type 2 surge arrester for DC and photovoltaic application.

• Protect the solar equipment like solar panels and solar inverter from surges damage and overvoltage.

• Improve the PV system safety and longer the PV system life.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Company profile:

Wenzhou Britec Electric Co.,Ltd is a company specialized in SPD products for many years; Using the brand for many years exporting of which it's experience enables Britec the ability to know what customers need, what end users need. Top quality and best services is our first and formost belief. welcome to cooperate with us, welcome to join us!

40ka 1000V Class II 3P PV Surge Arrester Protector 35mm Din Rail Mount 1

Workshop show:

Certifications:

FAQ:

1. Who are we?
A: We are based in Yueqing, Zhejiang, China, start from 2003, sell to Europe, South America, Mid East, Southeast Asia, Africa.

2. How can we guarantee quality?
A: Always final Inspection before shipment;

3. What can you buy from us?
A: All kinds of SPDs.

4. Why should you buy from us not from other suppliers?
A: Focus on customer service always!

5. What services can we provide?
A: Accepted Delivery Terms: FOB, CIF, EXW
Accepted Payment Currency:USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, PayPal;
Language Spoken:English, Chinese
