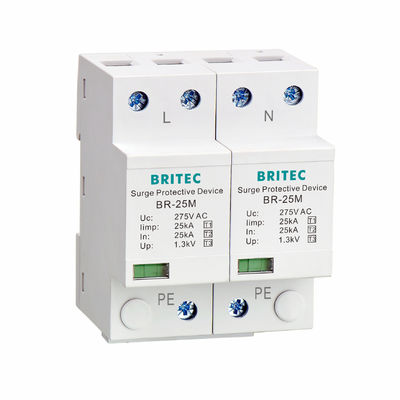

Name: BR-25M 1P T1 Class I+II 25kA Single Phase SPD surge Arrestor lightning protector
Brand: Britec Electric Co., Ltd.
SKU: BR-25M 1P
Price: Negotiable USD
Availability: InStock

Home Products T1+T2 Surge Arrester B+C

BR-25M 1P T1 Class I+II 25kA Single Phase SPD surge Arrestor lightning protector

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV/CB/CE
Model Number:	BR-25M 1P

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	T1 Surge Arrester	Place Of Origin:	Zhejiang, China
Enclosure Material:	Thermoplastic, UL94 V‐0	Number Of Positions:	1P
Brand Name:	BRITEC	Model Numbers:	BR-25M 1P
Rated Voltage:	AC 275V	EN Type:	Type 1
Color:	White
Highlight:	T1 single phase SPD , Thermoplastic single phase SPD , Thermoplastic 25ka spd

T1 surge arrester Class I+II 25kA single phase voltage protection device

T1 surge arrester Features:

The BTITEC surge arrester series has been specifically designed to offer surge protection for electrical equipment. Surge arresters are installed at the front end of a system for the purpose of diverting harmful overvoltage transients caused by external (lightning) and/or internal (switching) events to ground safely. Also known as Surge Protection Device (SPD), or Transient Voltage Surge Suppressor (TVSS),BRITEC surge arrestors protect against electrical transients resulting from lightning strikes that find their way onto electrical conductors.

Protection class: Type 1,Class I

Pole number:1P,2P,3P,4P,1+1,3+1 optional

Widely used for protecting the buildings to avoid national defense

The combination lightning current and surge arrestors meet the type 1+2 requirement class according to IEC 61643-1.

T1 surge arrester Technology characteristic:

	BR-25M 1P
Max. continuous operating a.c. voltage Uc	275V
Lightning impulse current (10/350us) Iimp	25kA
Nominal discharge current (8/20us) In	25kA
Maximum discharge current (8/20us) Imax	100kA
Voltage protection level Up	≤1.3kV
Response time tA	≤25ns
Max. backup fuse	315A
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Test standards	IEC 61643-11, EN 61643-11

T1 surge arrester Dimension:

BR-25M 1P T1 Class I+II 25kA Single Phase SPD surge Arrestor lightning protector 1

T1 surge arrester Application:

Application: Grid Power, AC Power Circuit, AC Distribution Box, LT Electrical Panel

AC SPD uses for AC Power or Grid Power to protect against transient ac voltage.

T1 surge arrester Certificate:

CB, CE, TUV,RoHS Certificate:

Company information:

Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. We are a comprehensive international manufacturer & trading company for SPDs. Most of our products are sold to Germany, United Kingdom, Italy, Spain, France, Hungary, Brazil, Argentina, South Korea, Hongkong, Singapore, Malaysia, Thailand, Indonesia, other countries and regions. Our business principle is to satisfy our customers with honest, surefooted and considerate service.
