| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV |
| Model Number: | BR-25M 3P |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | 275v Power Strip Protector | Place Of Origin: | Wenzhou |
|---|---|---|---|
| Response Time: | 25ns | Number Of Positions: | 3P |
| Brand Name: | BRITEC | Model Numbers: | BR-25M 3P |
| Rated Voltage: | AC 275V | EN Type: | Type 1 |
| MOQ: | 1PCS | ||
| Highlight: | Class I power strip surge protector,275v power strip surge protector,275v 3p surge protector |
||

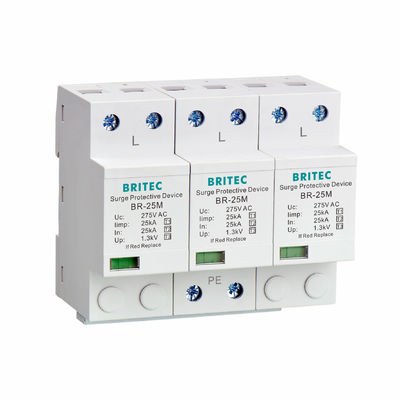

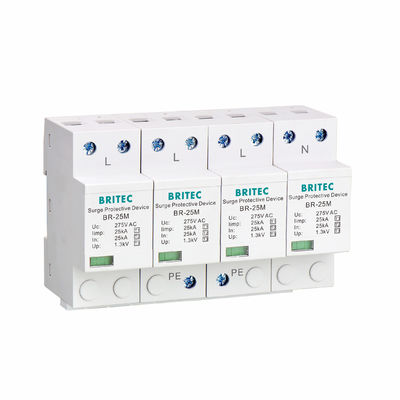

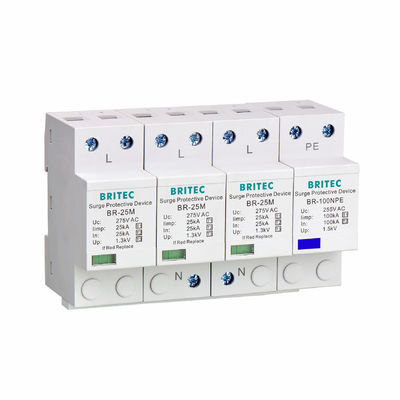

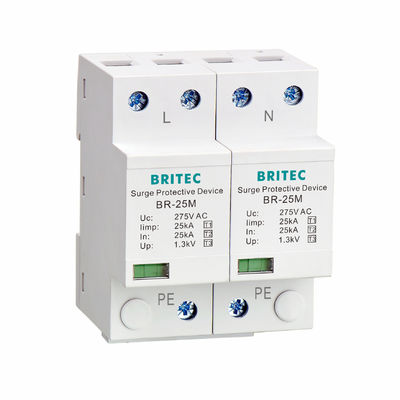

275v surge arrester Class I lightning surge protection device Power Strip protector
Power Strip protector Features:
+ Connectable lightning current and surge arrestors
+ High arresting capacity up to 25 kA (10/350μs)
+ Application from 1 to 4 poles
+ Available with optional remote signaling
+ Failure indication
+ Combination arrestors for buildings with lightning protection
+ Simple standard hat rail mounting
+ Labelled connections
+ Usable in systems with lightning protection class I+II
Power Strip protector Technology characteristic:
| BR-25M 3P | |
| Max. continuous operating a.c. voltage Uc | 275V |
| Lightning impulse current (10/350us) Iimp | 25kA |
| Nominal discharge current (8/20us) In | 25kA |
| Maximum discharge current (8/20us) Imax | 100kA |
| Voltage protection level Up | ≤1.3kV |
| Response time tA | ≤25ns |
| Max. backup fuse | 315A |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Test standards |
IEC 61643-11, EN 61643-11 |
Power Strip protector Dimension:
Power Strip protector Application:
• For electrical installations.
• Suitable for lightning protection of power supply system in areas with high risk of lightning strike (LPZ0B or interface between LPZ0B and LPZ1).
• Can handle lightning currents and protect sensitive electronic equipment.
CB, CE, TUV,RoHS Certificate:
Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. Our company specialized in research and development of surge protection devices.The series of surge protection device Type 1 and Type 2 and Type 3, BR PV and SPDs for Data offer the market with a new choice of high quality surge arresters. We have 18 years of experience in the research & development and production of the surge protection field and provide 5 years warranty.
.
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in orthopedic and sport products. And we trade our products with our clients directly.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
Q: What’s your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
Q: Which payment form you can accept?
A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
