| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | CE |
| Model Number: | RJ45 |
| Minimum Order Quantity: | 1 piece / pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | 15-20 days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pieces per month |
| Working Conditions: | -40℃ To 80℃ | Enclosure Material: | Polyamide PA 6.6 |
|---|---|---|---|
| Supplier Type: | Original Manufacture | Protection Level Up: | 0.25KV |
| IP Code: | IP20 | Standard: | IEC Standard |
| Interface Form: | RJ45 | SPD Class: | TYPE2 P1 |
| Highlight: | Ethernet Data Surge Protector,Din Rail Type Ethernet Surge Protecor,SPD Ethernet Surge Protection Device |
||

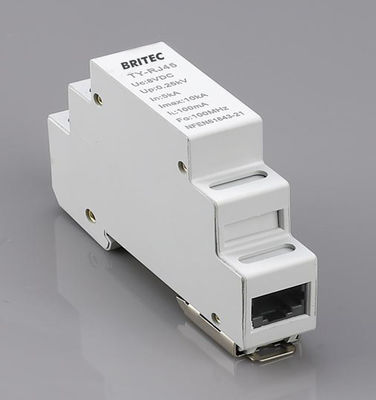

SPD Ethernet Data Surge protection and Din Rail Type
RJ45 surge protector Product Details:
| Specification | BR-RJ45 | |
| Test standards | IEC 61643-21 | |
| SPD class | TYPE2 P1 | |
| Norminal voltage | Un | 8V |
| Max. continuous operating d.c. voltage | Uc | 8V |
| Max. continuous operating a.c. voltage | Uc | 8V |
| Nominal current | IL | 100mA |
| C2 Norminal discharge current (8/20μs) line-line | In | 5kA |
| Voltage protection level | Up | 0.25kV |
| Insertion loss at 250 MHz | ≤3dB | |
| Operating temperature range | Tu | -40℃-80℃ |
| For mounting on | 35mm DIN rails acc. to EN 60715 | |
| Connection (input/output) | RJ45 socket/RJ45 socket | |
| Pinning | 1/2, 3/6, 4/5, 7/8 | |
| Earthing via | 35mm DIN rails acc. to EN 60715 | |
| Enclosure material | polyamide PA 6.6 | |
| Degree of protection (plugged-in) | IP10 | |
Product Description:
Scope of application
■ Surge protection of terminal PC network card
■ Surge protection of other network equipment
Britec owns advanced test equipments and product line, perfect management, professional technical
personnel and well-trained workers. Britec team keep developing newest product for our customer, that
is why technical level of our products can be reached to the leading level, we also can help customer
OEM/ODM.
Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD)
manufacture with many years experiences.We are providing quality products, competitive price, prompt
delivery and excellent service, and looking forward to even greater cooperation with overseas trade
based on mutual benefits.
Britec have strong sales team, our surge protection device are sold to many countries around the world.
Europe and Asia are our main market. We would like to cooperate with global customers and help you
success in your market.
Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company
implements ISO9001 quality mangement system.
Britec have developed a wide range of products mainly covering requirements in the area of low voltage
lightning protection, such as SPD for power system,PV system and data , etc. All these products have
been widely applied in electronic system, computer network and security system, protection for power
industry, petroleum chemical industry and national defense industry.
01
We have our own factory and in-house test laboratory, our R&D department have more than
20 years experiences.
02
Fast delivery: 2-3 weeks. Large scale production drive cost down: 300,000 pieces per year.
Qulaity recognized :cooperate with transnational company.
03
Inner box and out carton are made as per international standard.
We can make packaging according to customer's need.
04
Sure,we accept OEM and ODM order,please supply with the letter of Authorization for the brand.
05
5 years.
06
Of course,support sample order, especially for new customers under certain condition.
07
7-10 days.
08
Quality is priority. We always attach great importance to quality control from the beginning to the end of
the production. IQC inspects the components, the patrol inspection is done during production and all the
goods to be tested 100% before leaving the factory..
