| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV/CB/CE/ROHS/ISO9001 |
| Model Number: | BRRJ45L-4LR |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15-30 days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
| Features: | Rackmount Rj45 Surge Protection | Place Of Origin: | Zhejiang, China (Mainland) |
|---|---|---|---|
| Body Color: | Black | Model Number: | BRRJ45L-4LR |
| Item Name: | Ethernet Surge Protective Device | Warranty: | 2 Year |
| Interface Form: | RJ45 | Transmission Rate: | 100M/1000M |
| IP Code: | IP20 | Insertion Loss:: | ≤0.3dB |
| Material: | Shielded Aluminum Alloy | ||
| Highlight: | Port Rj45 Ethernet surge protection device,24Port Ethernet surge protector,IP20 Ethernet surge protection device |
||

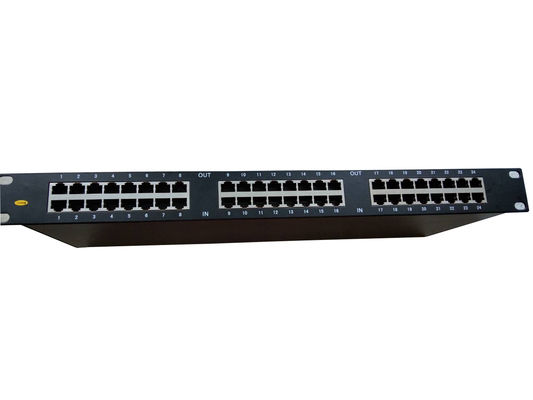

24 Port RJ45 Network Lightning Surge Protector With POE Support
Transient surge energies from sources such as nearby lightning strikes, inductive load switching, ground loop currents, and electrostatic discharge are clamped by AC protectors into the shared communication ground, resulting in damage to expensive communication hardware. 612/624/648 Series includes: 12, 24, and 48 port, 19” rack mounted protection units that feature 110 punchdown to RJ45 connectors. CAT6 performance. Also available in configurations that offer protection for Telco and ISDN circuits.
BRRJ45 series signal surge protector (hereinafter referred to as SPD) is suitable for computer networks (Ethernet, LAN, token ring), servers, routers, HuB, broadband. Its coarse protection, fine protection and fine protection function can meet different anti surge protection intervals. Protect the RJ45 interface to prevent damage to the signal equipment due to an increase in ground potential or a line-induced overvoltage.
Application:
Protect sensitive equipment from surges caused by lightning and grid power fluctuations.
Protects any RJ45 Ethernet based device like switches, DSL modems, routers, computers, etc.
Used to wireless access points and client devices, IP phone and security camera systems, and industrial control systems.
Product Details:
| BRRJ45L-4LR | |
| Test standards | IEC 61643-21 |
| Nominal voltage Un | 5V |
| Max.continuous operating d.c.voltage Uc | 6V |
| Max.continuous operating a.c.voltage Uc | 4V |
| Nominal current IL | 0.5A |
| C2 Nominal discharge current (8/20us) per line In | 5kA |
| Voltage protection level [line-line] Up | ≤30V |
| Voltage protection level [line-PG] Up | ≤500V |
| Response time [line-line] tA | ≤1ns |
| Response time [line-PG] tA | ≤100ns |
| Operating temperature range Tu | -40℃…+80℃ |
| Connection (input/output) | RJ45 socket |
| Connection input/output | RJ45 24 sockets |
| Bandwidth | 30 Mbps |
| Insertion Loss | ≤0.3dB |
| Enclosure material | aluminium alloy |
| Degree of protection | IP20 |
Dimension:
Packaging & Shipping:
• Package: Export standard carton or according to customers' requests.
• Shipping: by express, by sea or by air.
Company Information:
Britec Electric Wenzhou Co.,Ltd. Which is a professional manufacturer, mainly work for low
voltage equipment research and development, manufacturing, selling and After-sale service,
which specialized in surge protection device.
FAQ:
Q1: Why don't person reply to me?
A: Our person is 24hours on-line. If nobody reply you, maybe he has other bussinesses temporarily.
So please leave your requirements on e-mail, we will reply you as soon as possible.
Q2: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More important, we put a high value on our reputation.
Best quality is our principle all the time. You can be assured on our production completely.
Q3: What's your terms of payment?
A: T/T 30% deposit, and 70% before delivery. We will show you the photos of the products and
packages before you pay the balance.
Q4: What's the delivery time?
A: It depends on the type of the product and quantity, generally it takes about 15-30 days
for production.
Q5: What's your terms of packing?
A: Generally our packing is cartons, or customized packing according to customer needs.
