| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV |
| Model Number: | BR-25GR 1P |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | 275v Surge Protection | Place Of Origin: | Wenzhou |
|---|---|---|---|
| Response Time: | 25ns | Number Of Positions: | 2P |
| Type: | Type 1 + Type 2/ Class I + Class II | Enclosure Material: | Thermoplastic, UL94 V‐0 |
| Shipping Term: | TNT DHL FEDEX EMS UPS | Customized: | Yes |
| Operating State: | Green / Red | ||
| Highlight: | Surge Protector Lightning Arrester Supresor,275v T1+T2 Surge Arrester,T1+T2 3p Surge Arrester B+C |
||

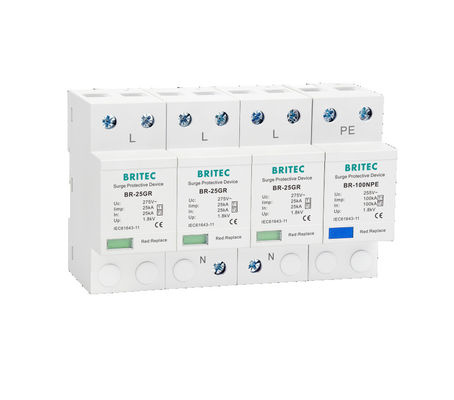

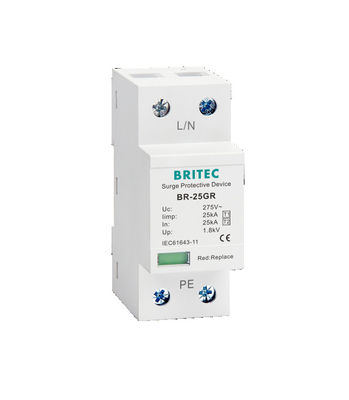

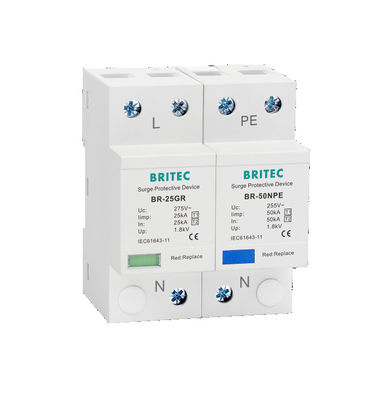

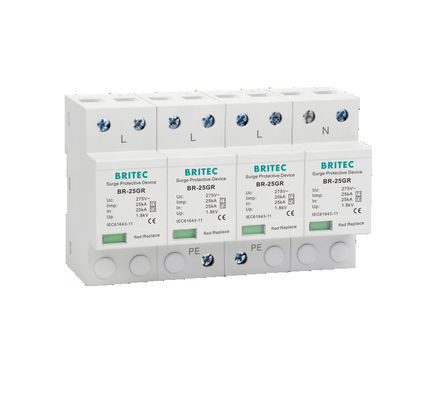

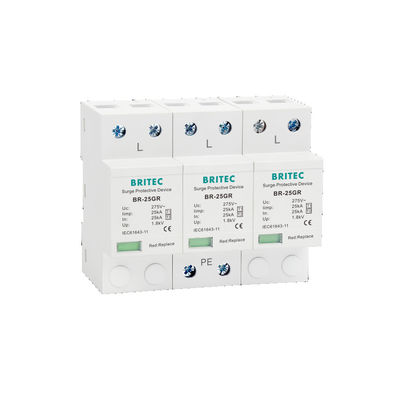

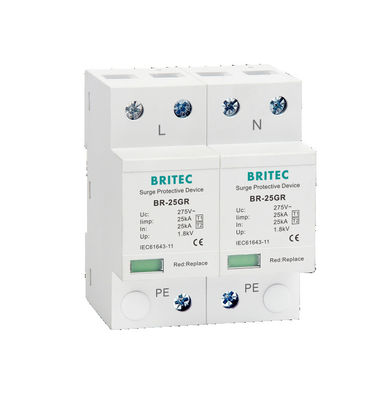

275v surge arrester Class I lightning surge protection device
Surge protector Features:
This surge protective device is characterized by its capacity to withstand impulse current with 10/350 µs waveform which simulate direct impact coming from a natural lightning current. Type 1 and Type 1+2 SPDs are placed at the entrance point of the installation, in the main distribution board for global protection of this installation.
Surge protector Technology characteristic:
| BR-25GR 1P | |
| Max. continuous operating a.c. voltage Uc | 275V |
| Lightning impulse current (10/350us) Iimp | 25kA |
| Nominal discharge current (8/20us) In | 25kA |
| Maximum discharge current (8/20us) Imax | 100kA |
| Voltage protection level Up | ≤1.8kV |
| Response time tA | ≤25ns |
| Max. backup fuse | 315A |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Test standards |
IEC 61643-11, EN 61643-11 |
Surge protector Application:
• For electrical installations.
• Suitable for lightning protection of power supply system in areas with high risk of lightning strike (LPZ0B or interface between LPZ0B and LPZ1).
• Can handle lightning currents and protect sensitive electronic equipment.
CB, CE, TUV,RoHS Certificate:
Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. Our company specialized in research and development of surge protection devices.The series of surge protection device Type 1 and Type 2 and Type 3, BR PV and SPDs for Data offer the market with a new choice of high quality surge arresters. We have 18 years of experience in the research & development and production of the surge protection field and provide 5 years warranty.
.
